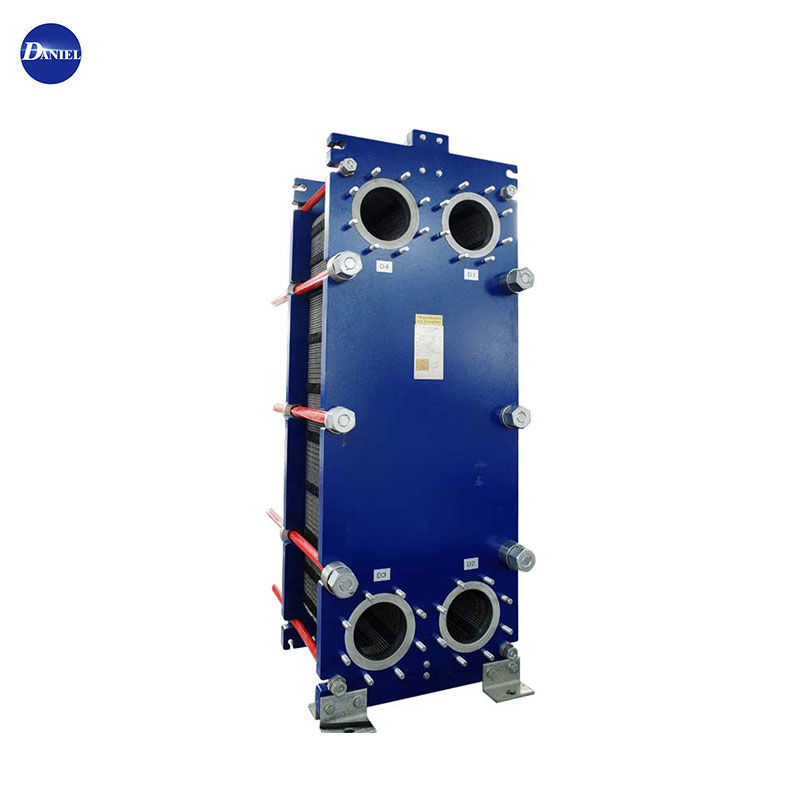

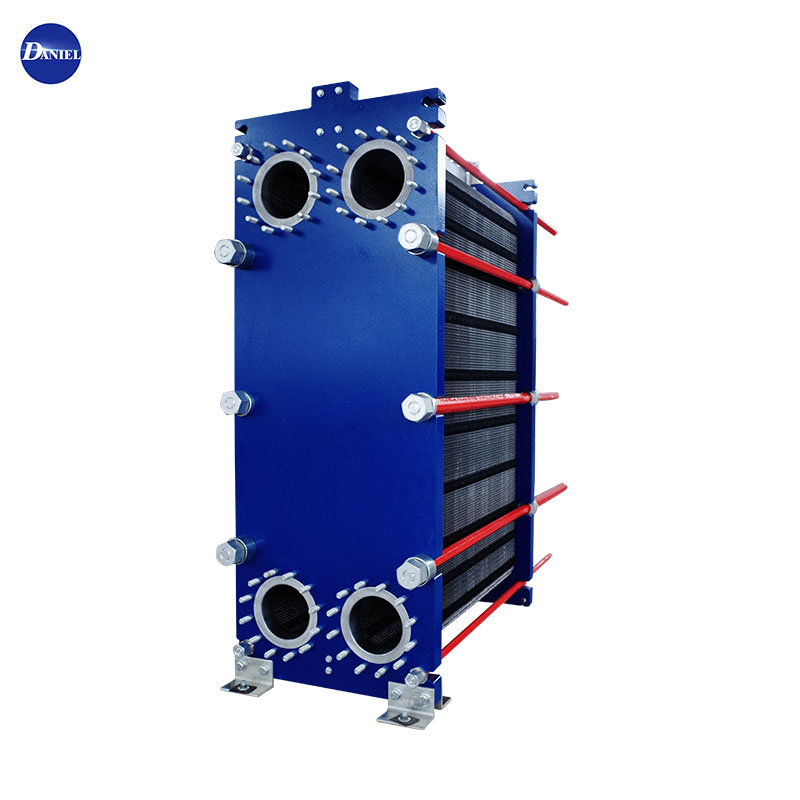

Titanium Plate For Swimming Pool Plateheat Exchanger N35
|Cross Reference ALFA LAVAL||M3||M6, M6M||TS6M||TLlOB|
|Height, H [mm]||480||920||940||704||1885|
|Width, W [mm]||180||320||330||400||480|
|Minstandardlength, L [mm]||400||500||500||530||850|
|Max standard length, L [mm]||650||1500||1500||1430||2350|
|Verticalportdisance, VC [mm]||357||640||640||380||1338|
|Horizontal portdistance, HC [mm]||60||140||140||203||225|
|Max pressure [barg]||16||10||16||16||10|
|Flange size Pipe||Pipe 1 1/4"||DN50/2"||DN50/2"||DN65/2"||DN100/4"|
|Max. Flow rate [kg/s]||4||16||20||50|
|Cross Reference ALFA LAVAL||MlOM, M10B||M15M, M15B||M20M,T20M,T20B|
|HeigHt. H [mm]||1084||1084||1885||1885||2150|
|Width, W [mm]||470||470||610||650||750|
|Min standard length,L [mm]||700||700||1150||1150||1250|
|Max standard length,L [mm]||2300||2300||2050||3250||3350|
|Horizontal port distance, HC [mm]||225||225||298||298||353|
|Max temparature [℃]||180||180||180||180||180|
|Max pressure [barg]||10||16||10||16||42659|
|Max. flow rate [kg/s]||50||80||225|
|Cross Reference ALFA LAVAL||TS20M||MX25B||M30|
|HeigHt. H [mm]||1405||2595||2920|
|Width, W [mm]||740||920||1190|
|Min standard length,L [mm]||900||1550||1650|
|Max standard length,L [mm]||2700||3350||5200|
|Horizontal port distance, HC [mm]||363||439||596|
|Max pressure [barg]||42659||42659||42659|
|Max. flow rate [kg/s]||190||250||250||497|
HVAC: Provide heating for offices , factories , residential buildings , hotels , restaurants , heating and water supply , heating and cooling for air-conditioning systems.
Iron and steel industry: mold cooling , continuous casting machine cooling , hydraulic oil cooling , emulsion cooling , furnace water cooling.
Surface treatment: electrolyte cooling , paint cooling , phosphating solution cooling.
Automobile industry: quenching oil cooling , paint cooling ,phosphate treatment liquid cooling.
Alcohol and corn deep processing: liquefaction cooling , saccharification cooling , fermentation cooling , wine mother cooling , methanol cooling , fusel oil cooling , crude wine preheating , and miscellaneous wine preheating.
Petroleum and petrochemical: heating and cooling of various oil products , large-scale desalinated water cooling device.
Power nuclear power: closed circulating water , nuclear island cooling of nuclear power plant , auxiliary water supply system , vacuum pump cooling of unit.
Coal chemical industry: coal gas cooling , lean and rich oil cooling , ammonia water cooling , waste water cooling , desulfurization liquid cooling , desalted water cooling , crude methanol preheating , benzene vapor condensation , ammonia-rich water condensation , heating water addition , boiler feed water preheating.
Promise chemical industry: various liquid medicines , pure water heating , cooling , evaporation , condensation and sterilization.
Organic chemical industry: various inorganic acids , alkali , salt heating , evaporation , condensation , sulfuric acid cooling , heating of various concentrations of lye and electrolyte , heat recovery device for desalination process.
Pharmaceutical hygiene: emulsion cooling , plasma cooling , infusion cooling , antibiotic cooling , starch liquid cooling.
Food industry: raw juice heating , jam heating ,milk pasteurization and cooling ,carbonated juice heating ,a variety of wine heating and cooling.
Marine and engines: central cooling ,lubricating oil cooling ,piston coolant cooling ,transmission oil cooling ,heavy fuel oil preheating , diesel preheating ,sea water heating ,offshore and offshore central cooling ,lubricating oil cooling ,lower tank heating.
Metallurgical industry: blast furnace ,continuous casting ,closed circulating water cooling , various lubricating oil and emulsion cooling ,transmission oil cooling.
Water treatment and desalination: membrane system application , water microbial treatment ,water purification ,clean and recycled use.
Q : Can I have a sample order?
A : Yes , we welcome sample order to test and check quality.Mixed samples are acceptable.
Q : What is the lead time?
A : Sample needs 1-3 days , mass production needs 7-15days , also according to the order volume.
Q : Can you accept mixed batch of different products?
A : Yes , we are support different product mix wholesale.
Q : How do you ship the goods and how long does it take arrive?
A : For sample order , we usually ship by DHL , UPS , FedEx or TNT.It usually takes 3-5 days to arrive.
Q : Can you provide container packed in wooden cases if I order more products?
A : Yes , we are can provide a set of wooden packaging products , but only in big quantity.
Q : We want to visit your company?
A : No problem , we are a production and processing enterprises , look forward to your arrival and we will lead you to visit our factory and processing factory.
