Plate Heat Exchanger Gasket

Jiangyin Daniel Cooler Co., Ltd. (Daniel Cooler) was founded in 2004. It is a heat exchanger manufacturer that produces detachable plate heat exchangers (PHE), heat exchanger gaskets (PHEGASKET), heat exchanger plates (PHEPLATE) and provides plate heat exchanger maintenance services (PHEMAINTENANCE).

Jiangyin Daniel Cooler has design and production technology and professional heat exchanger knowledge. It has been committed to providing high-quality plate heat exchangers, various types of plate heat exchanger plates and gaskets to customers in the petroleum, chemical, industrial, food and beverage, electricity, metallurgy, shipbuilding, HVAC and other industries in many countries and regions. Special plate heat exchanger plates and rubber gaskets can be designed and manufactured according to customer needs.

Plate heat exchanger strip models: M3, M6B, M6M, M6MX-L, M6MX-R, M10B,M10M, M15B, M15Blip, MK15BW, M15M, M20M, MX25B, MX25M, M30, MA30M, MA30W, EC500, AM20, P31-HBM, AK20, C10, Clip6, Clip8H, AM30, MX25, Ec350, TL6B, TL10B, TS20M, TS6M, AM30, P22, P26, P31, P32, P36, A15B, A15M, A10, A10B, T20B, T20M, TS20M, P36, TL10B, T20P, clip6, clip8, clip10, AX30, AX30B, AX30BW, JWP26, JWP36, EC50, EC150, EC350, EC500.

Sugar industry, metallurgical industry heat exchanger rubber gasket, sealing gasket EC50, EC150, EC350, EC500, EC500-WTEL, EC500-WTFE, EC500-ETFC, EC500-TFR, EC50-WTEL, EC50-WTFEEC50-ETFC, EC50-TFR, EC350-WTEL, EC350-WTFE, EC350-ETFC, EC350-TFR,

Plate heat exchanger gasket model: T4, H17, N35, N25, SR2, N50, A055, J060, M92 (adhesive), J092, A085, J107, Q080, K34, K55, K71 (adhesive), P105, M60, P190, U2, E201, SR3, Q030, Q055, J185, SR6, H12, SR1, RS3

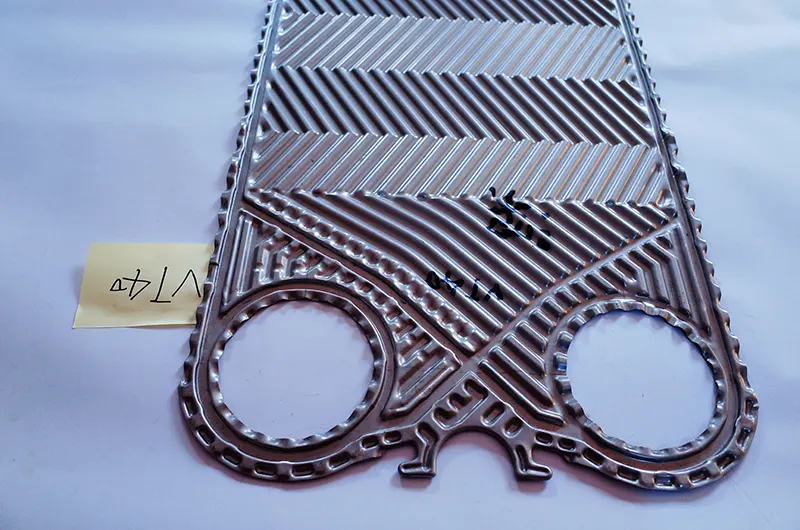

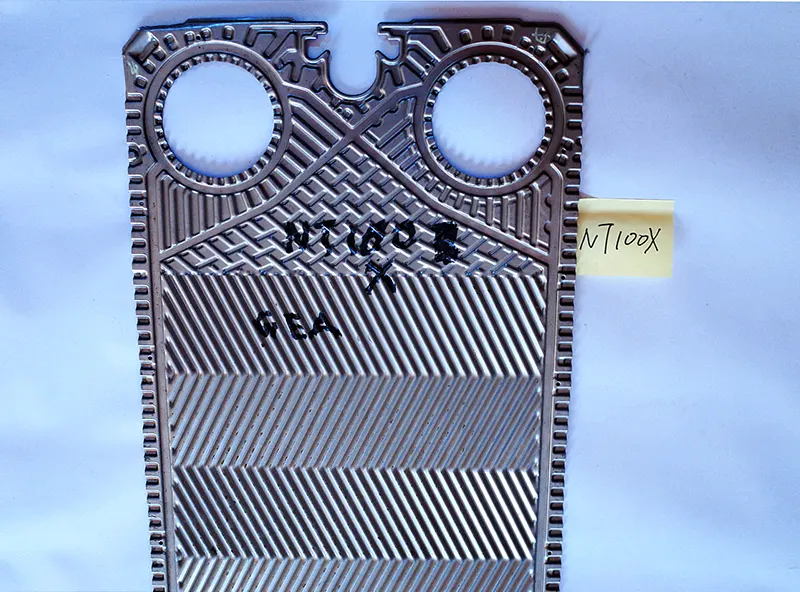

Plate heat exchanger gasket model: VT4, VT8, VT10, VT20, VT20, N40, VT40, VT80, VT130, VT1306, VT2508, VT2508 B-10, VT2508 B-16, VT2508 B NT250S, NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, VT405, NT250S, NT250L VICARB

Plate heat exchanger gasket models: V10, V20 (snap-on), V20 (F-adhesive), V45 (snap-on, adhesive), V60 (adhesive), V85 (adhesive), V130 V4, V13, V20, V28, V45, V60A, V60B, V85, V85D, V100A, 100B, V110A, V130, V170, V280

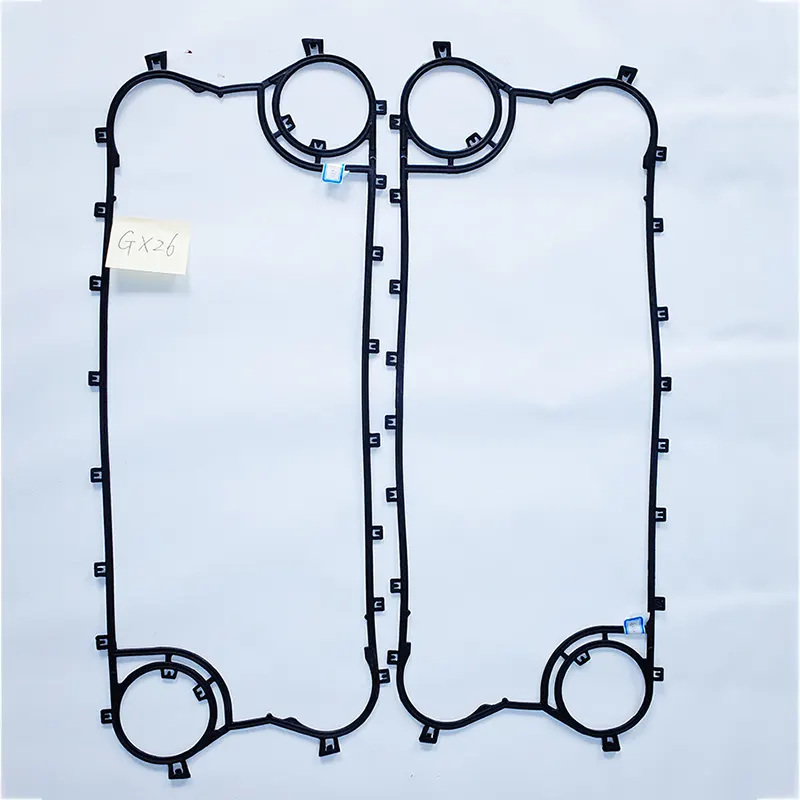

Plate heat exchanger rubber pad model: GX-12, GX-12P1, GX-018, GX-26, GC-26, GX42, GC42, GC-30PI, GC-60PI, GX-51, GC-51, GX-60, GX-100, GX-180,

Plate heat exchanger rubber pad model: Sigma9, Sigma26, Sigma27, Sigma37, Sigma66, Sigma76, Sigma114, Sigma7, Sigma X29, Sigma M37, Sigma38, Sigma M66, Sigma 107, Sigma90SAL

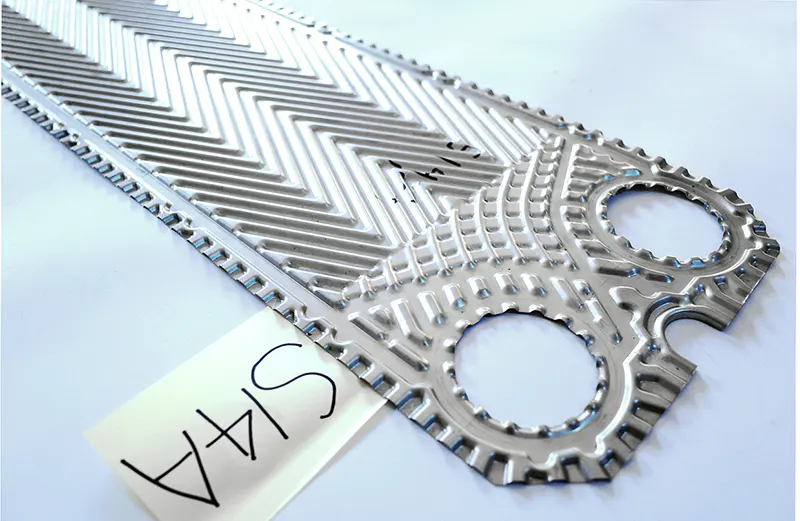

Plate heat exchanger rubber sealing gasket model: S4, S7, S8, S9, S14, S15, S15FS, S21, S22, S30, S37, S39, S41, S43, S47, S50, S62, S65, S81, S83, S121

Plate heat exchanger sealing ring model: TL90PP, TL90SS, TL150PP, TL150SS, TL200PP, TL200SS, TL250PP, TL250SS, TL400SS, TL500PP, TL500SS, TL650PP, TL650SS, TL850PP, TL850SS

Plate heat exchanger gasket model: RX-70, LX50A, EX-15, EX-16, UX416, UX-01, UX-05, UX-20, UX-30, UX-40 can be designed and manufactured according to customer needs

Introduction to plate heat exchanger sealing gaskets:

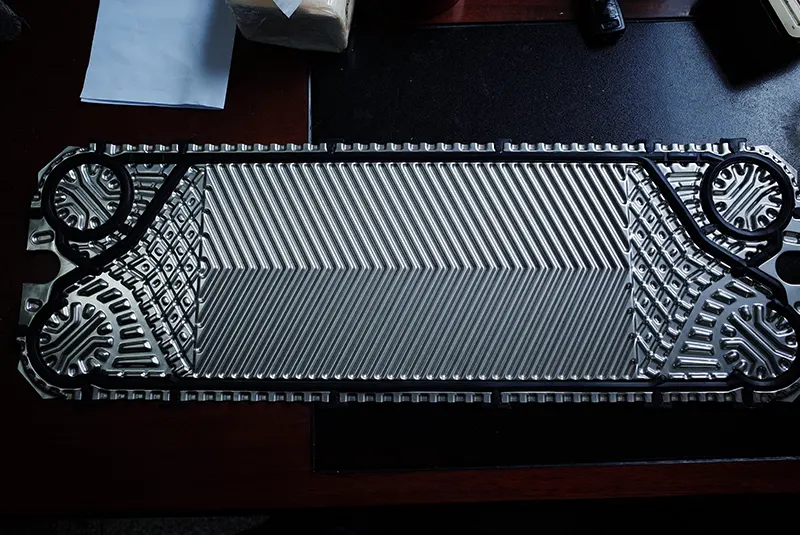

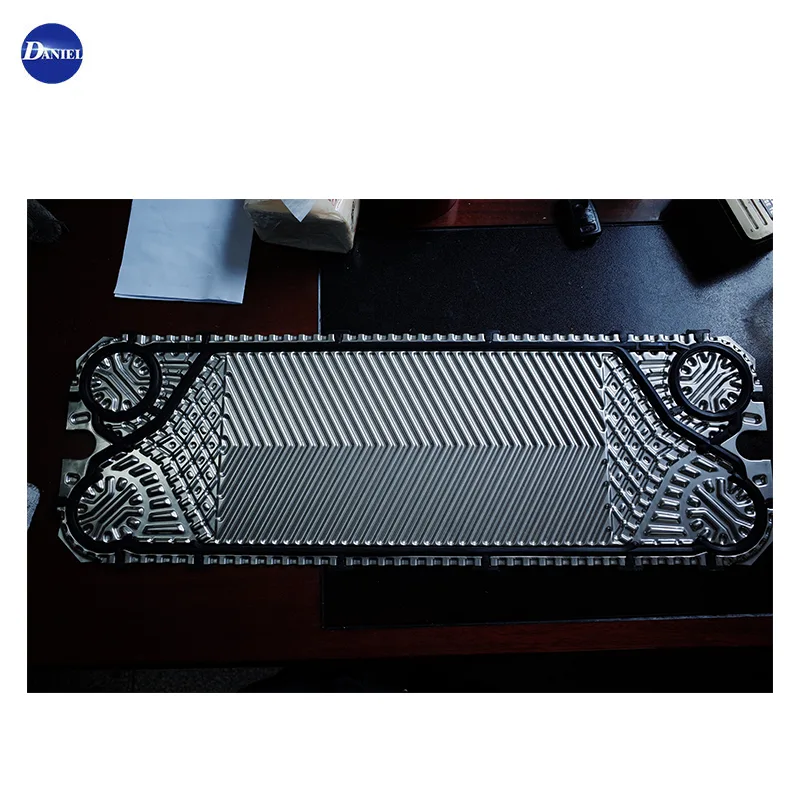

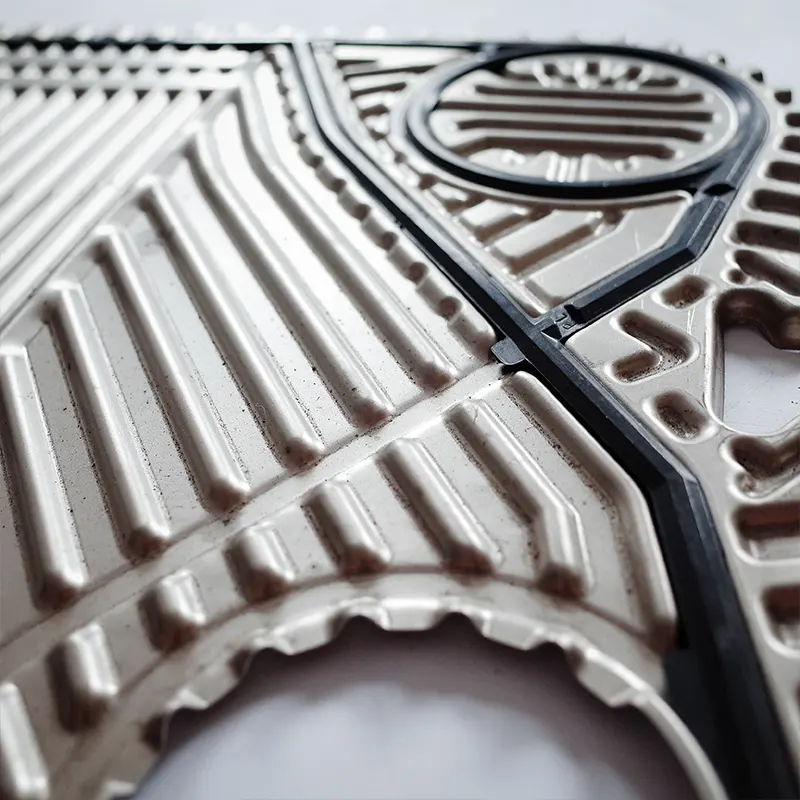

Plate heat exchanger sealing gaskets, also known as plate heat exchanger gaskets or plate heat exchanger rubber sealing gaskets, are gaskets used to seal the top of plate heat exchangers. Its materials mainly include nitrile rubber (NBR), ethylene propylene rubber (EPDM), high-temperature nitrile rubber (HNBR), fluororubber (FPM, VITON G), etc., and are important components of plate heat exchangers. Its quality affects the overall function and working condition of the plate heat exchanger.

Three main types of sealing gaskets:

(a) Direct adhesive type, that is, after applying sealant on the sealing gasket, it is directly glued to the installation groove of the heat exchange plate.

(b) The nail-embedded type is designed with assembly holes on the heat exchange plate and nails on the edge of the sealing gasket. After the sealing gasket is placed in the installation groove, the nails are embedded in the assembly holes.

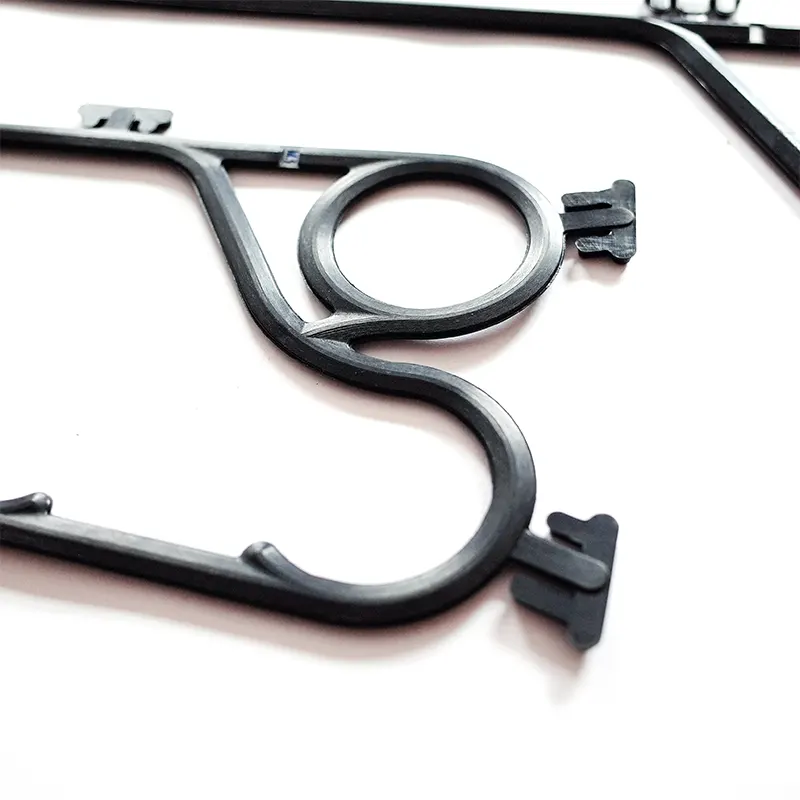

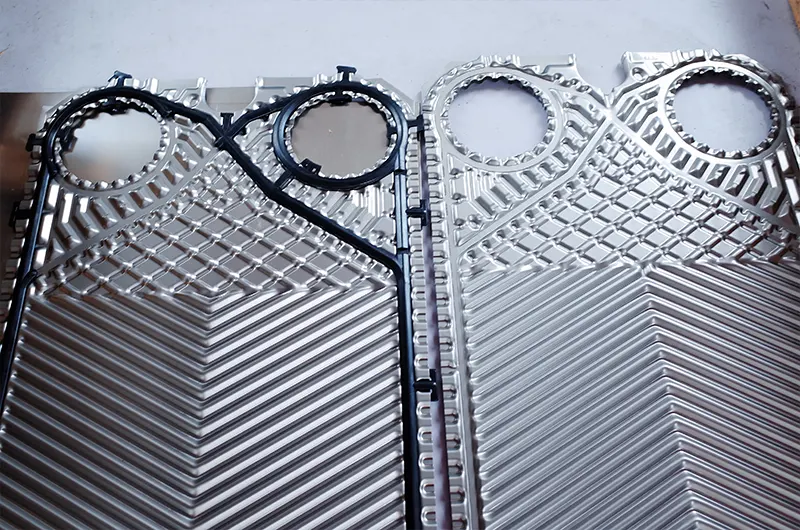

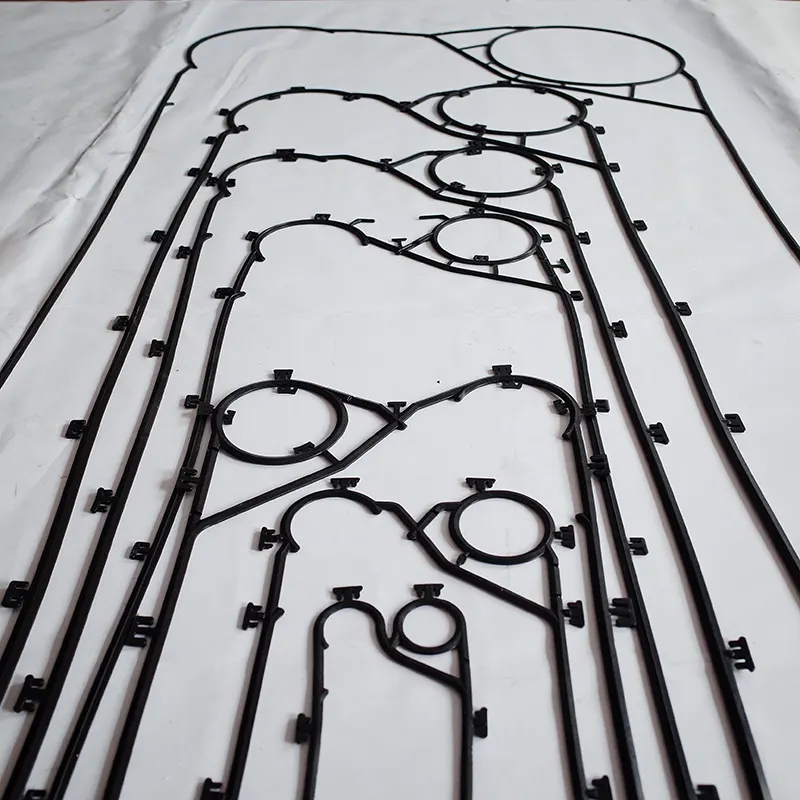

(c) The buckle type is designed with a "mountain"-shaped buckle on the edge of the sealing gasket, and the sealing gasket is buckled on the heat exchange plate with the buckle.

Application of Daniel plate heat exchanger gasket:

Shipbuilding industry: Mainly used for cooling, jacket water cooling, lubricating oil cooling, piston coolant cooling, transmission oil cooling, heavy fuel oil preheating, diesel preheating, other process cooling, etc.;

Power industry: Heat exchangers in the power industry are mainly used for open or closed circulation water cooling, transmission oil cooling, turbine oil cooling, lubricating oil cooling, piston and turbine and engine coolant cooling, diesel power plant heat recovery, exhaust gas heat recovery;

Pharmaceutical industry: heat exchangers in the pharmaceutical industry are mainly used for drug sterilization, emulsion cooling, suspension heating, plasma heating, citric acid heating, infusion cooling, etc.;

Steel industry: heat exchangers in the steel industry are mainly used for mold/continuous casting machine coolant cooling, hydraulic oil/lubricating oil cooling, machine coolant cooling, electrolyte heating and cooling, furnace water/feed water/emulsion/coking plant wastewater cooling, furnace body/electric j support/transformer coolant cooling;

Air conditioning and HVAC: heat exchangers in the HVAC industry are mainly used for regional heating, domestic hot water, ice storage, swimming pool constant heating, heat pump device, heat recovery device, heating water preheating, geothermal water/steam utilization, etc.

Chemical industry: Heat exchangers are mainly used in the chemical industry for heating and cooling of process media, oil cooling, electrolyte cooling, degreasing liquid heating, phosphating liquid cooling, etc.
