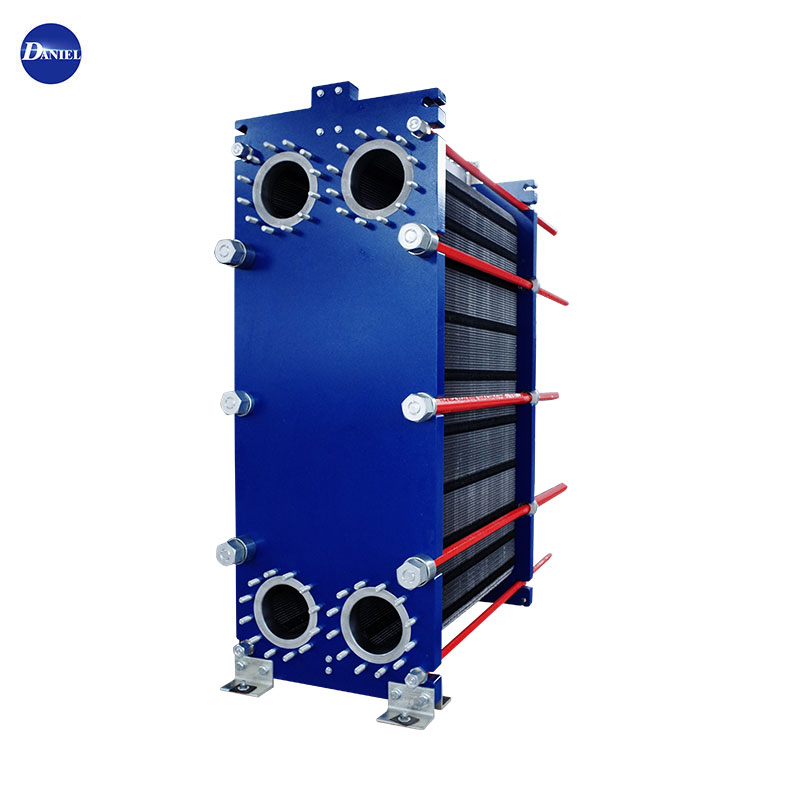

Plate Heat Exchanger For Freon Water Air Compressor Oil Cooler Epdm Gasket S7

Plate Heat Exchanger For Freon Water Air Compressor Oil Cooler Epdm Gasket S7: Provide heating for offices, factories, residential buildings, hotels, restaurants, heating and water supply, heating and cooling for air-conditioning systems.

Send Inquiry

Product Description


Plate Heat Exchanger For Freon Water Air Compressor Oil Cooler Epdm Gasket S7


Model BH30 BH60B/BH60H   SH60H LB100B
Cross Reference ALFA LAVAL M3 M6, M6M TS6M TLlOB
Height, H [mm] 480 920 940 704 1885
Width, W [mm] 180 320 330 400 480
Minstandardlength, L [mm] 400 500 500 530 850
Max standard length, L [mm] 650 1500 1500 1430 2350
Verticalportdisance, VC [mm] 357 640 640 380 1338
Horizontal portdistance, HC [mm] 60 140 140 203 225
Max temperature[℃] 180 180 180 180 160
Max pressure [barg] 16 10 16 16 10
Flange size Pipe Pipe 1 1/4" DN50/2" DN50/2" DN65/2" DN100/4"
Max. Flow rate [kg/s] 4 16   20 50
Model BH100B/BH100H   BH150B/BH150H   BH200H
Cross Reference ALFA LAVAL MlOM, M10B   M15M, M15B   M20M,T20M,T20B
HeigHt. H [mm] 1084 1084 1885 1885 2150
Width, W [mm] 470 470 610 650 750
Min standard length,L [mm] 700 700 1150 1150 1250
Max standard length,L [mm] 2300 2300 2050 3250 3350
Venical portdistance,VC[mm] 719 719 1294 1294 1478
Horizontal port distance, HC [mm] 225 225 298 298 353
Max temparature [℃] 180 180 180 180 180
Max pressure [barg] 10 16 10 16 42659
Flange size DN100/4" DN100/4" DN150/6" DN150/6" DN200/8"
Max. flow rate [kg/s] 50   80   225
Model SH200B BH250 BH300H
Cross Reference ALFA LAVAL TS20M MX25B M30
HeigHt. H [mm] 1405 2595 2920
Width, W [mm] 740 920 1190
Min standard length,L [mm] 900 1550 1650
Max standard length,L [mm] 2700 3350 5200
Venical portdistance,VC[mm] 698 1939 1842
Horizontal port distance, HC [mm] 363 439 596
Max temparature 180 180 180
Max pressure [barg] 42659 42659 42659
Flange size DN200/8" DN200/DN250/8"/10" DN300/DN350/12"/14"
Max. flow rate [kg/s] 190 250 250 497



Application areas:
HVAC: Provide heating for offices , factories , residential buildings , hotels , restaurants , heating and water supply , heating and cooling for air-conditioning systems.

Iron and steel industry: mold cooling , continuous casting machine cooling , hydraulic oil cooling , emulsion cooling , furnace water cooling.

Surface treatment: electrolyte cooling , paint cooling , phosphating solution cooling.

Automobile industry: quenching oil cooling , paint cooling ,phosphate treatment liquid cooling.

Alcohol and corn deep processing: liquefaction cooling , saccharification cooling , fermentation cooling , wine mother cooling , methanol cooling , fusel oil cooling , crude wine preheating , and miscellaneous wine preheating.

Petroleum and petrochemical: heating and cooling of various oil products , large-scale desalinated water cooling device.

Power nuclear power: closed circulating water , nuclear island cooling of nuclear power plant , auxiliary water supply system , vacuum pump cooling of unit.

Coal chemical industry: coal gas cooling , lean and rich oil cooling , ammonia water cooling , waste water cooling , desulfurization liquid cooling , desalted water cooling , crude methanol preheating , benzene vapor condensation , ammonia-rich water condensation , heating water addition , boiler feed water preheating.

Promise chemical industry: various liquid medicines , pure water heating , cooling , evaporation , condensation and sterilization.

Organic chemical industry: various inorganic acids , alkali , salt heating , evaporation , condensation , sulfuric acid cooling , heating of various concentrations of lye and electrolyte , heat recovery device for desalination process.

Pharmaceutical hygiene: emulsion cooling , plasma cooling , infusion cooling , antibiotic cooling , starch liquid cooling.

Food industry: raw juice heating , jam heating ,milk pasteurization and cooling ,carbonated juice heating ,a variety of wine heating and cooling.

Marine and engines: central cooling ,lubricating oil cooling ,piston coolant cooling ,transmission oil cooling ,heavy fuel oil preheating , diesel preheating ,sea water heating ,offshore and offshore central cooling ,lubricating oil cooling ,lower tank heating.

Metallurgical industry: blast furnace ,continuous casting ,closed circulating water cooling , various lubricating oil and emulsion cooling ,transmission oil cooling.

Water treatment and desalination: membrane system application , water microbial treatment ,water purification ,clean and recycled use.
