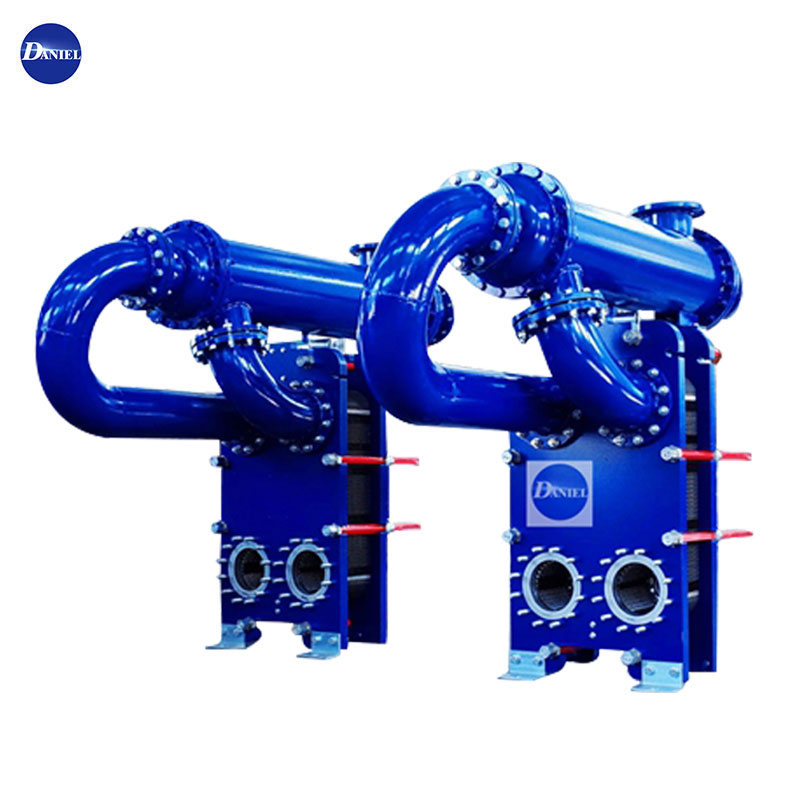

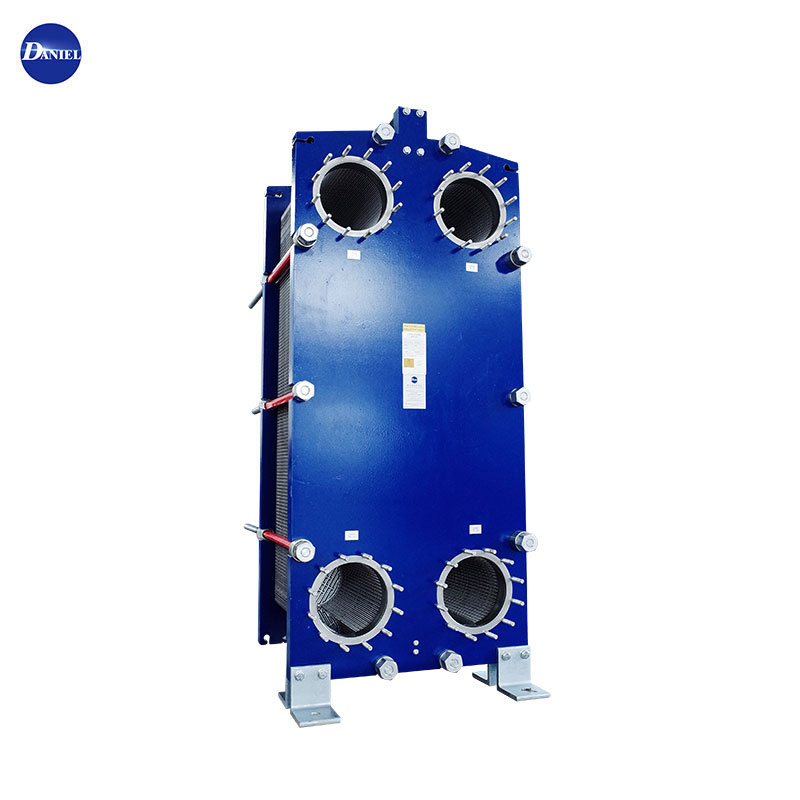

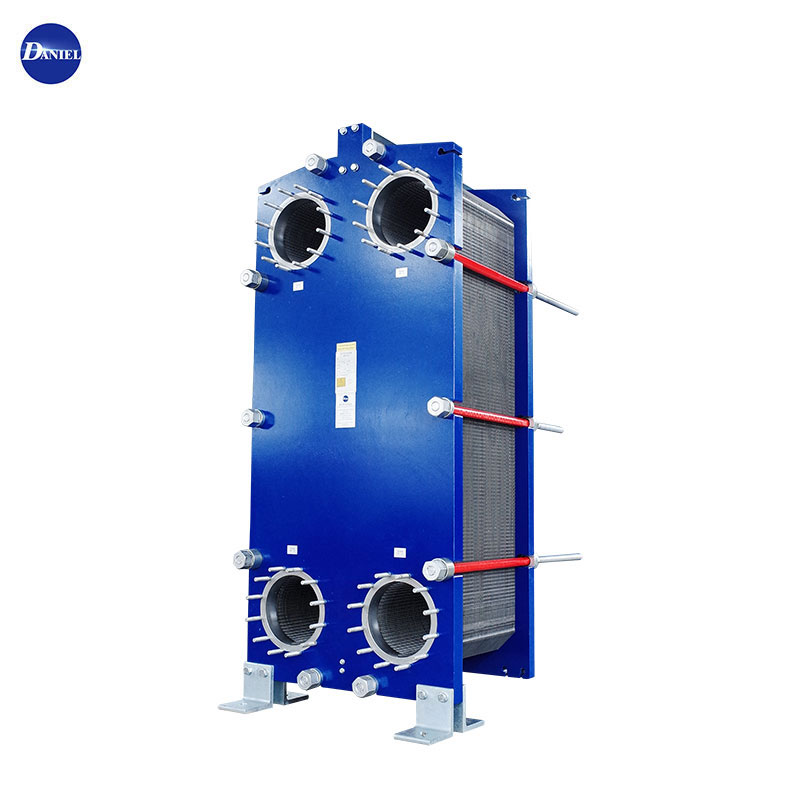

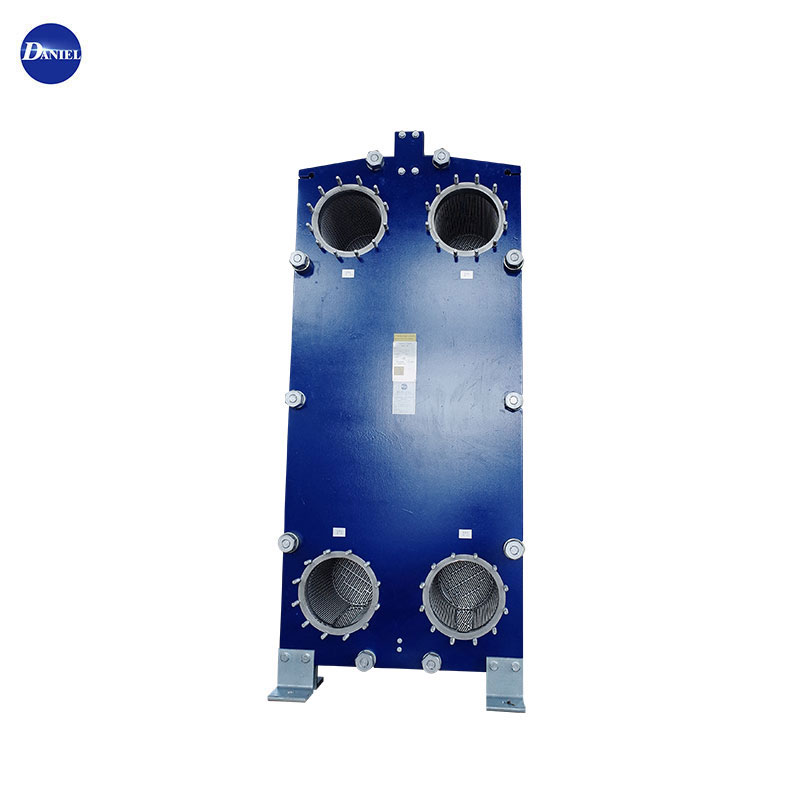

S4A S7 S7A S8A S9A S14A S15 S18 S19A S20 S20A S21 S21A S22 S30 Plate Heat Exchanger

S4A S7 S7A S8A S9A S14A S15 S18 S19A S20 S20A S21 S21A S22 S30 Plate Heat Exchanger: Provide heating for offices, factories, residential buildings, hotels, restaurants, heating and water supply, heating and cooling for air-conditioning systems.

Send Inquiry

Product Description


S4A S7 S7A S8A S9A S14A S15 S18 S19A S20 S20A S21 S21A S22 S30 Plate Heat Exchanger


Model BH30 BH60B/BH60H   SH60H LB100B
Cross Reference ALFA LAVAL M3 M6, M6M TS6M TLlOB
Height, H [mm] 480 920 940 704 1885
Width, W [mm] 180 320 330 400 480
Minstandardlength, L [mm] 400 500 500 530 850
Max standard length, L [mm] 650 1500 1500 1430 2350
Verticalportdisance, VC [mm] 357 640 640 380 1338
Horizontal portdistance, HC [mm] 60 140 140 203 225
Max temperature[℃] 180 180 180 180 160
Max pressure [barg] 16 10 16 16 10
Flange size Pipe Pipe 1 1/4" DN50/2" DN50/2" DN65/2" DN100/4"
Max. Flow rate [kg/s] 4 16   20 50
Model BH100B/BH100H   BH150B/BH150H   BH200H
Cross Reference ALFA LAVAL MlOM, M10B   M15M, M15B   M20M,T20M,T20B
HeigHt. H [mm] 1084 1084 1885 1885 2150
Width, W [mm] 470 470 610 650 750
Min standard length,L [mm] 700 700 1150 1150 1250
Max standard length,L [mm] 2300 2300 2050 3250 3350
Venical portdistance,VC[mm] 719 719 1294 1294 1478
Horizontal port distance, HC [mm] 225 225 298 298 353
Max temparature [℃] 180 180 180 180 180
Max pressure [barg] 10 16 10 16 42659
Flange size DN100/4" DN100/4" DN150/6" DN150/6" DN200/8"
Max. flow rate [kg/s] 50   80   225
Model SH200B BH250 BH300H
Cross Reference ALFA LAVAL TS20M MX25B M30
HeigHt. H [mm] 1405 2595 2920
Width, W [mm] 740 920 1190
Min standard length,L [mm] 900 1550 1650
Max standard length,L [mm] 2700 3350 5200
Venical portdistance,VC[mm] 698 1939 1842
Horizontal port distance, HC [mm] 363 439 596
Max temparature 180 180 180
Max pressure [barg] 42659 42659 42659
Flange size DN200/8" DN200/DN250/8"/10" DN300/DN350/12"/14"
Max. flow rate [kg/s] 190 250 250 497



Application areas:
HVAC: Provide heating for offices , factories , residential buildings , hotels , restaurants , heating and water supply , heating and cooling for air-conditioning systems.

Iron and steel industry: mold cooling , continuous casting machine cooling , hydraulic oil cooling , emulsion cooling , furnace water cooling.

Surface treatment: electrolyte cooling , paint cooling , phosphating solution cooling.

Automobile industry: quenching oil cooling , paint cooling ,phosphate treatment liquid cooling.

Alcohol and corn deep processing: liquefaction cooling , saccharification cooling , fermentation cooling , wine mother cooling , methanol cooling , fusel oil cooling , crude wine preheating , and miscellaneous wine preheating.

Petroleum and petrochemical: heating and cooling of various oil products , large-scale desalinated water cooling device.

Power nuclear power: closed circulating water , nuclear island cooling of nuclear power plant , auxiliary water supply system , vacuum pump cooling of unit.

Coal chemical industry: coal gas cooling , lean and rich oil cooling , ammonia water cooling , waste water cooling , desulfurization liquid cooling , desalted water cooling , crude methanol preheating , benzene vapor condensation , ammonia-rich water condensation , heating water addition , boiler feed water preheating.

Promise chemical industry: various liquid medicines , pure water heating , cooling , evaporation , condensation and sterilization.

Organic chemical industry: various inorganic acids , alkali , salt heating , evaporation , condensation , sulfuric acid cooling , heating of various concentrations of lye and electrolyte , heat recovery device for desalination process.

Pharmaceutical hygiene: emulsion cooling , plasma cooling , infusion cooling , antibiotic cooling , starch liquid cooling.

Food industry: raw juice heating , jam heating ,milk pasteurization and cooling ,carbonated juice heating ,a variety of wine heating and cooling.

Marine and engines: central cooling ,lubricating oil cooling ,piston coolant cooling ,transmission oil cooling ,heavy fuel oil preheating , diesel preheating ,sea water heating ,offshore and offshore central cooling ,lubricating oil cooling ,lower tank heating.

Metallurgical industry: blast furnace ,continuous casting ,closed circulating water cooling , various lubricating oil and emulsion cooling ,transmission oil cooling.

Water treatment and desalination: membrane system application , water microbial treatment ,water purification ,clean and recycled use.
